Tuesday, September 18, 2007

Lightroom values for the colorchecker chart

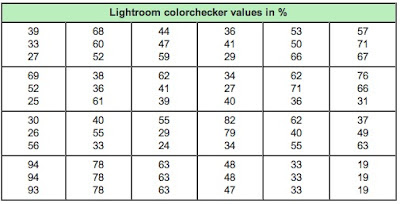

Since Lightroom's colorspace is based on prophotoRGB but has a different gamma, you cannot use any of the published values for the color patches in one of the Gretag MacBeth colorcheckers that many people use to check the color rendition of their toolchain and that you can use to calibrate the color rendering of ACR for your specific camera. Usually you would do this in ACR/PS, but if you only have LR, what do you do? Well you can use the below values in Lightroom and do it manually by going back and forth between patches and changing the hue and saturation in the camera calibration part of the develop module (after white balancing on the second grey patch!). These values are based of the values in this excellent page, so there will be a small error in there of about 1%. I simply did the appropriate transform to gamma 2.2 for the values in the ppRGB column. The values are in percent of the channel in R,G,B laid out just like the colorchecker chart.



Honestly, I have no idea why not all the grey patches are neutral, but this should help those manually calibrating in Lightroom.

EDIT: No idea why, but blogger messes up my HTML table, so it is now just a picture of a table. Hope this still works.

UPDATE 9/19/07: I uploaded a table with more precise values from 16-bit values of the colorchecker reference in the next post.

3 comments:

  1. Jao,
    Thanks for that conversion info to convert rgb targets on ColorChecker into Lightroom percentage equivalents. Something isn't working in Adobe forum, hope it's OK to reply here.

    It's nice to have something to double check
    tests I did looking for Lightroom percentage equivalents for a 5C, 3M, 2Y
    highlight and a 80, 70, 70, 70 shadow. Any reason not to calibrate to a
    ColorChecker directly in Lightroom? Other than not being able to use the
    script which would develop a better average? Seems like it would avoid any
    problems that might arise if wrong profile was used in Photoshop.
    Tim

    ReplyDelete
  2. Tim,

    the problem is that it is really hard to iterate between patches in lightroom. I have not written about the strategy you should take either. First one needs to get the exposure, brightness and contrast right to be able to compare the color patches. The photoshop scripts do this for you automatically.

    ReplyDelete
  3. Hi Jao! Do you get these exact (or approximate) values just with the generated DCP or do you have to manually adjust the image using the Camera Calibration or HSL controls?

    Thanks,

    ReplyDelete
